Basic 50

Mogs Basic is a complete system of 2 mm thick, with different depth 50 and 60 in galvanized and bright steel profiles. With a range of snap-on and screw-on glazing beads and multiple gaskets and accessories, Mogs Basic makes it possible to create all types of opening, to satisfy every aesthetic and functional requirement.

SYSTEM FEATURES

  1. continuously welded tubular profile in galvanized steel, 2 mm thick
  2. overlapping sightlines
  3. 12 mm gap for multipoint locks
  4. self-adhesive non-shrinking gaskets
  5. section of 50×20 mm, for a minimalist design
  6. compatible with insulating glazing, including security glass
  7. tubolar snap on or “L” shaped, angular glazing beads
  8. wide range of adjustable hinges, both visible and concealed
  9. any kind of openings: side-hung, top-hung and bottom-hung windows, tilt and turn, pivoting and folding doors
  10. surface finishes in any RAL o customized colours

GLAZING BEADS

FV 2018L-02

FV 2018R-02

HINGES

C99002-12 example on window

C99008-12 example on window

C99014-02 example on door

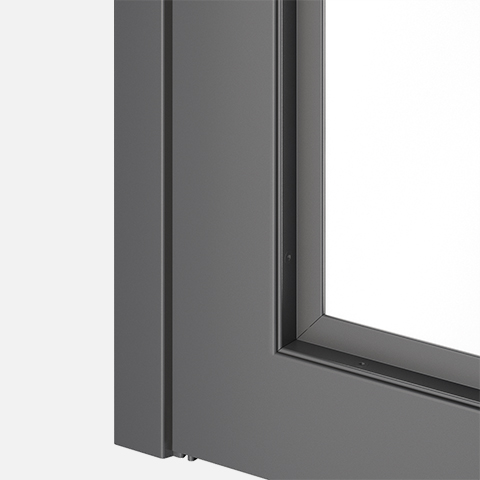

C99402-02 example on door

C9935X-04 example on pivot door

E99903-02 example on folding

MATERIALS

Galvanized steel

Bright steel

TECHNICAL DATA & DOWNLOADS

Download supporting documents & brochures here
